Toote informatsioon
Tootekirjeldus inglise keeles:

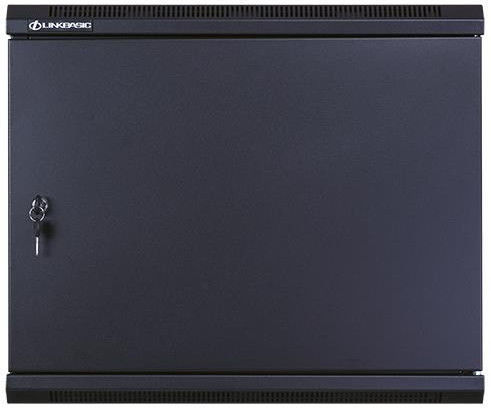

One-section WCB-series hanging cabinets of the mounting height 9U are most often used in close circuit television, security alarm, and access control system installations. Apart from security and organization, they provide quick access to the elements mounted inside. In order to increase protection of devices mounted, front doors are made of sheet metal. Apart from the possibility to mount devices in 19-inch standard, other devices that are not compatible with the rack system (such as switches or recorders) may be placed in the cabinets with the use of shelves. A wide range of optional accessories allows to adjust the cabinet to your own needs.
One-section WCB-series hanging cabinets of the mounting height 9U are most often used in close circuit television, security alarm, and access control system installations. Apart from security and organization, they provide quick access to the elements mounted inside. In order to increase protection of devices mounted, front doors are made of sheet metal. Apart from the possibility to mount devices in 19-inch standard, other devices that are not compatible with the rack system (such as switches or recorders) may be placed in the cabinets with the use of shelves. A wide range of optional accessories allows to adjust the cabinet to your own needs.
- Standard equipment: mounting rail set
- Side doors mounted on latches with a lock assembly option
- A rack rail indicating the amount of units (U)
- Two cable ducts - ceiling and floor
- A frame with a load capacity of 60kg
- Cold-rolled steel
- Frame thickness: 1.2 mm
- Mounting rail thickness: 1.5 mm
- Side panel thickness: 1.2 mm
- Protection class IP20
- Surface finish: degreasing, etching, phosphating, powder coating
- Protection against rust, oxidation, scratches, corrosion
- Front door - full steel
- Available in black RAL9004
- Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards
- Compatible with metric ETSI and 19-inch international standards
