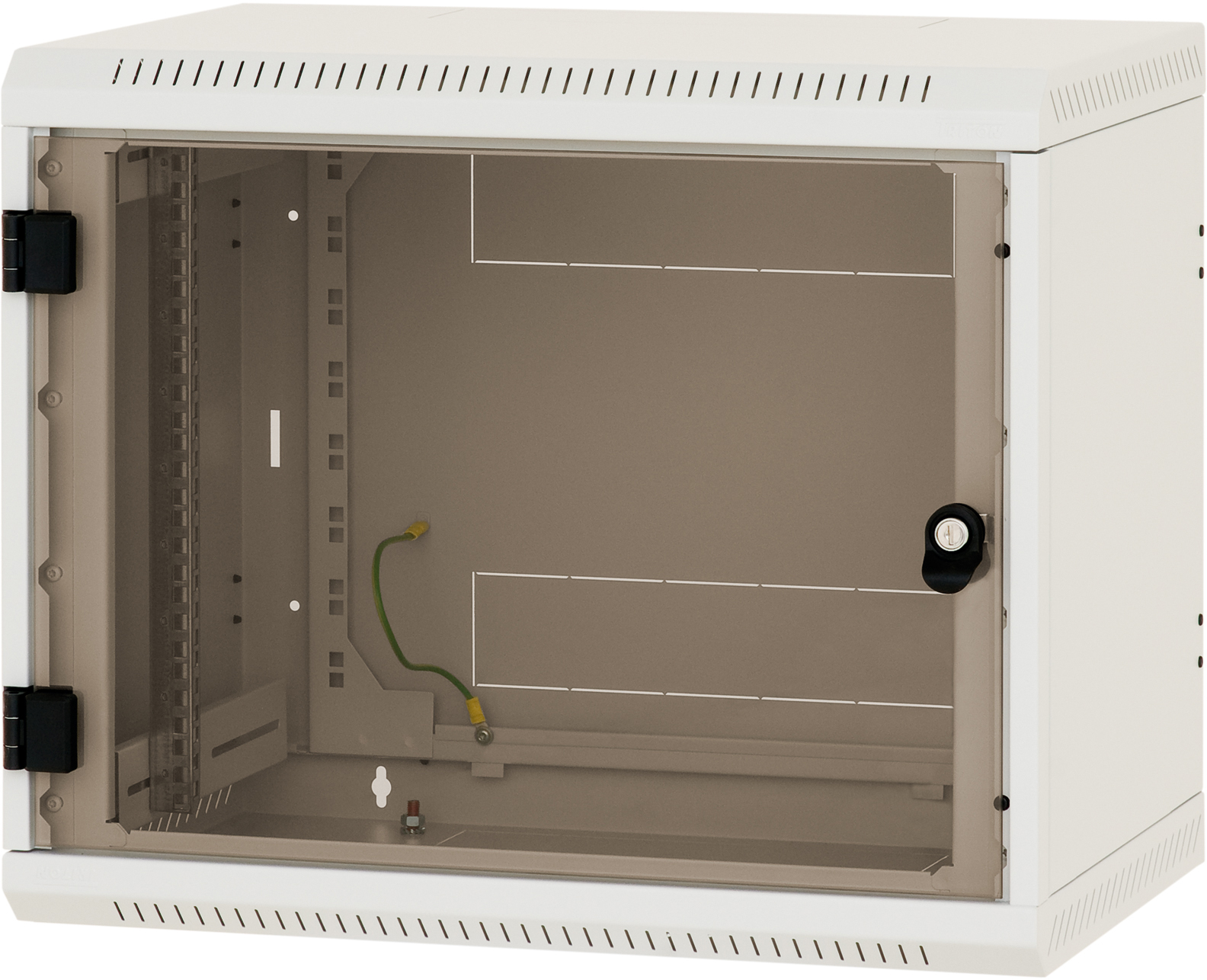

Triton RBA-12-AS4-CAX-A1 Wall Mount Cabinet
Toote kirjeldus inglise keeles:
One-sectioned welded wall cabinet.
IP30, capacity 30 kg.
Rigid construction High quality workmanship and up-to-date technology ensure a perfect look of the cabinet.
Door The cabinet has fully glass door in standard. It can be steel or perforated if required.
Flexible door opening The hinge system allows the door to open almost 180°. The door can be easily removed and re-mounted to change the direction of opening.
Door lock It enables an easy and quick access into the cabinet.
Adjustable vertical rails One pair of vertical 19“ rails is freely adjustable in any depth of the cabinet. This simplifies mounting of devices and organisation of connecting cables.
Breakout-type blanking panels Cable openings covered with breakout-type blanking panels are ready in the top, bottom and rear part of the cabinet. In the supply, there is a fringe edge and a blanking panel with a brush to seal the cabinet opening against dust penetration.
Ventilation The RBA type A6* has 6 break-out blanking panels for the installation of ventilation units RAx-CH-X2x-X1 or fans RAX-CH-X07-X9 (up to 3 in top and 3 in bottom part of the cabinet). The RBA cabinet provides with a possibility to install an equipment, which has never been cooled enough before. Such equipment could be only installed into free standing cabinets before.
Toote kirjeldus inglise keeles:
One-sectioned welded wall cabinet.
IP30, capacity 30 kg.
Rigid construction High quality workmanship and up-to-date technology ensure a perfect look of the cabinet.
Door The cabinet has fully glass door in standard. It can be steel or perforated if required.
Flexible door opening The hinge system allows the door to open almost 180°. The door can be easily removed and re-mounted to change the direction of opening.
Door lock It enables an easy and quick access into the cabinet.
Adjustable vertical rails One pair of vertical 19“ rails is freely adjustable in any depth of the cabinet. This simplifies mounting of devices and organisation of connecting cables.
Breakout-type blanking panels Cable openings covered with breakout-type blanking panels are ready in the top, bottom and rear part of the cabinet. In the supply, there is a fringe edge and a blanking panel with a brush to seal the cabinet opening against dust penetration.
Ventilation The RBA type A6* has 6 break-out blanking panels for the installation of ventilation units RAx-CH-X2x-X1 or fans RAX-CH-X07-X9 (up to 3 in top and 3 in bottom part of the cabinet). The RBA cabinet provides with a possibility to install an equipment, which has never been cooled enough before. Such equipment could be only installed into free standing cabinets before.
