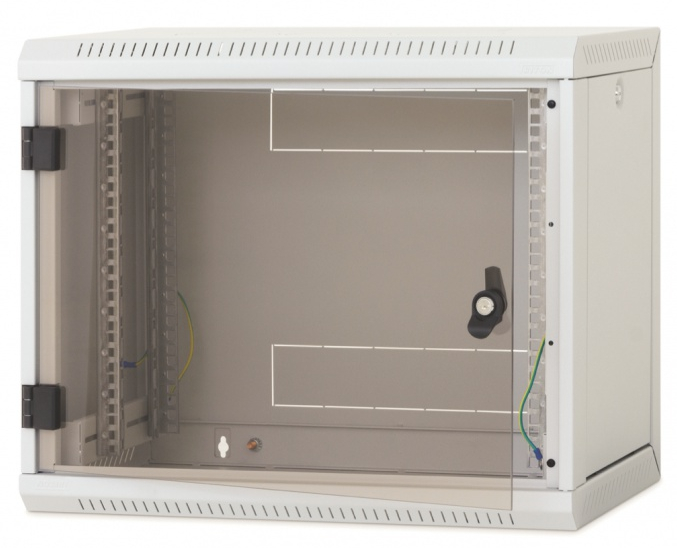

Triton RUA-09-AS4-CAX-A1 9U Wall Mount Cabinet
Toote kirjeldus inglise keeles:
One-sectioned welded cabinet with removable side panels.
IP30, capacity 30 kg.
Rigid construction
Flexible door opening
Door lock
Adjustable vertical rails
Door The cabinet has fully glass door in standard. It can be steel or perforated if required.
Breakout-type blanking panels Cable openings covered with breakout-type blanking panels are ready in the top, bottom and rear part of the cabinet. In the supply, there is a fringe edge and a blanking panel with a brush to seal the cabinet opening against dust penetration.
Removable side panels Removable side panels enables easy access to the installed devices from the side.
Ventilation The RUA type has 6 break-out blanking panels for the installation of ventilation units RAx-CH-X2x-X1 or fans RAX-CHX07-X9 (up to 3 in top and 3 in bottom part of the cabinet). RUA therefore enables installation of devices that in the past could not be cooled sufficiently in wall-mounted cabinets and had to be installed into free-standing cabinets only.
Toote kirjeldus inglise keeles:
One-sectioned welded cabinet with removable side panels.
IP30, capacity 30 kg.
Rigid construction
High quality workmanship and up-to-date technology ensure a perfect look of the cabinet.
Flexible door opening
The hinge system allows the door to open almost 180°. The door can be easily removed and re-mounted to change the direction of opening.
Door lock
It enables an easy and quick access into the cabinet.
Adjustable vertical rails
Two pairs of vertical 19“ rails are freely adjustable in any depth of the cabinet. This simplifies mounting of the device and organisation of connecting cables.
Door The cabinet has fully glass door in standard. It can be steel or perforated if required.
Breakout-type blanking panels Cable openings covered with breakout-type blanking panels are ready in the top, bottom and rear part of the cabinet. In the supply, there is a fringe edge and a blanking panel with a brush to seal the cabinet opening against dust penetration.
Removable side panels Removable side panels enables easy access to the installed devices from the side.
Ventilation The RUA type has 6 break-out blanking panels for the installation of ventilation units RAx-CH-X2x-X1 or fans RAX-CHX07-X9 (up to 3 in top and 3 in bottom part of the cabinet). RUA therefore enables installation of devices that in the past could not be cooled sufficiently in wall-mounted cabinets and had to be installed into free-standing cabinets only.
