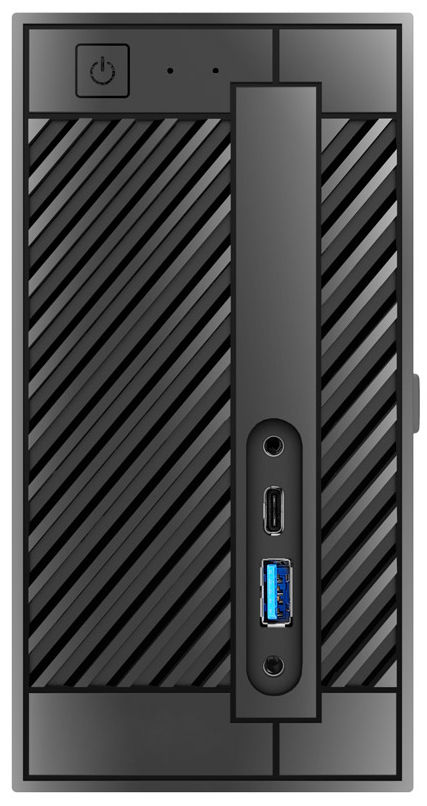

ASRock DesktopMINI 110
Toote kirjeldus inglise keeles:
Smaller Size, Better performance
Compared to T-series CPU models, DeskMini 110 uses 65W CPUs and is still smaller than other HTPCs, bringing up to 23% more performance.
Higher Value, Better performance
Compared to U-series CPU models, DeskMini 110 uses Intel standard CPUs that bring up to 21% more performance, while using cost effective Pentium or Core i3 processors.
DC-In Adapter
The DC-In adapter saves users up to 14% on power consumption compared to the traditional PSU design.
Tons of Customization Options
COM port header, TPM 2.0 chip, slim thermal fan or standard Intel box fan. Customize your own mini-STX.
Two M.2 Slots
A key E 2230 M.2 slot for supporting a Wi-Fi + BT module, and another type 2280 M.2 slot which is directly powered by the CPU, thus boasting 7% better performance than other M.2 slots for supporting PCIe Gen3 x4 M.2 SSDs.
USB 3.0 Type-C
A Type-C USB 3.0 connector for fast charging and delivering up to 5Gbps data transfer rates.
Flexible LAN Choice
Settle for the default Intel I219V LAN, or upgrade both your chipset to B150/Q170 and server grade Intel I219LM LAN.
Two SATA3 Headers
There are two SATA3 headers on the opposite side of the motherboard, which supports 2.5" HDDs/SSDs.
Three Graphics Outputs
This motherboard supports all three kinds of graphics D-Sub, HDMI and DP.
*Supports up to 2 displays simultaneously
Toote kirjeldus inglise keeles:
Smaller Size, Better performance
Compared to T-series CPU models, DeskMini 110 uses 65W CPUs and is still smaller than other HTPCs, bringing up to 23% more performance.
Higher Value, Better performance
Compared to U-series CPU models, DeskMini 110 uses Intel standard CPUs that bring up to 21% more performance, while using cost effective Pentium or Core i3 processors.
DC-In Adapter
The DC-In adapter saves users up to 14% on power consumption compared to the traditional PSU design.
Tons of Customization Options
COM port header, TPM 2.0 chip, slim thermal fan or standard Intel box fan. Customize your own mini-STX.
Two M.2 Slots
A key E 2230 M.2 slot for supporting a Wi-Fi + BT module, and another type 2280 M.2 slot which is directly powered by the CPU, thus boasting 7% better performance than other M.2 slots for supporting PCIe Gen3 x4 M.2 SSDs.
USB 3.0 Type-C
A Type-C USB 3.0 connector for fast charging and delivering up to 5Gbps data transfer rates.
Flexible LAN Choice
Settle for the default Intel I219V LAN, or upgrade both your chipset to B150/Q170 and server grade Intel I219LM LAN.
Two SATA3 Headers
There are two SATA3 headers on the opposite side of the motherboard, which supports 2.5" HDDs/SSDs.
Three Graphics Outputs
This motherboard supports all three kinds of graphics D-Sub, HDMI and DP.
*Supports up to 2 displays simultaneously
