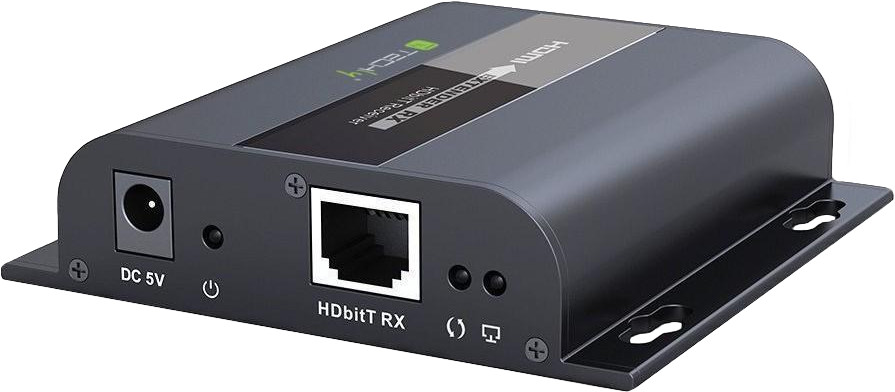

Name: Techly 025473 HDMI Receiver for HDMI HDbitT Extender by Cat6/6a/7
Brand: Techly
Price: 68.82 EUR
Availability: OutOfStock

Toote informatsioon

Üldnäitajad

Kaubamärk

Techly

Värv

Must v.

Pretensiooni esitamise õigus eraklientidele

24 kuud

Täiendav info

Maksimaalne kaugus: 120 m. Maksmimaalne video resolutsioon: 1080p

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

Techly 025473 HDMI Receiver for HDMI HDbitT Extender by Cat6/6a/7
Toote kirjeldus inglise keeles:

The HDMI extender HDbitT offers all the benefits of the latest transmission technology - HDbitT, allowing you to extend the HDMI audio / video signal with a resolution of 1080p 60Hz up to 120m using a single network cable. It supports IR signal transmission, to control media playback of the source device from the location where the display is located.

Specifications

HDMI HDbitT Receiver with IR
Transmission protocol: HDbitT
Supported resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
Network cable: UTP / STP Cat5E / 6
Transmission distance up to 120m transmission distance for 1080p 60Hz Full HD on a single CAT6 cable
IR Signal: Supports IR devices 20-60KHz
Operating Temperature: 0°C - 60°C
Power supply DC5V / 1A
RX consumption: 3W

Connection

Point-to-point connection: up to 120 meters transmission distance through single CAT6 cable (with a high quality cable can reach up to 150 meters)
Connection with Router: Using a router / repeater, you can reach unlimited extensions.
Point-to-Multipoint Connection: Using a router / switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function.

Note: We recommend the use of a gigabit switch (1000Mbps) for the LAN transmission.

Package content
