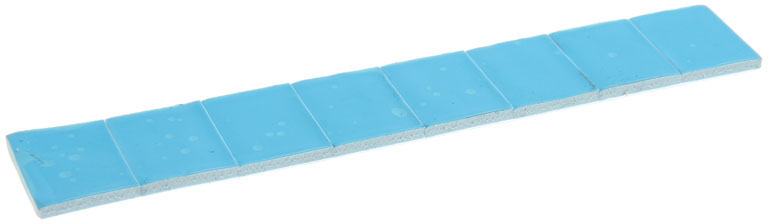

EK Water Blocks Thermal Pad E 2.0mm
Toote kirjeldus inglise keeles:
Thermal Pads are a real alternative to traditional thermal grease for many applications. The Thermal Pads offer some advantages over liquid or viscous materials. This makes it easy to cut the pads themselves to the required size, eliminating the uncertainty of applying paste or smearing during smoothing. The EK Water Blocks pad offered here is already pre-cut into eight smaller pieces, slightly self-adhesive, and usually initially holds itself in the previously assigned position.
Of course, the fixation in the further course of assembly can not be completely dispensed with, since heat source, thermal pad and heatsink (or the heat delivery surface) should come into contact with as large a surface area as possible in order to ensure optimum heat transfer. Here, too, comes EKWB the user maximum by the 100 x 16 mm large, blue pad in several strengths is available, the version offered here is 2.0 mm thick. In addition, the material is pleasantly flexible and adaptable, which makes it useful in many places.
To mention just a few application examples: in RAM water coolers, alternative graphics card coolers, chipset coolers and many other components, where it is important to effectively dissipate waste heat (eg on cooling fins, heatpipes, radiators, heatsinks, etc.). Since the EKWB heat-conducting pads do not conduct electricity, there are virtually no limits to the imagination of most electronic components. On the other hand, the pads with a high thermal conductivity of 3.5 W / (m · K) make some thermal grease look old. The pads here are ideally suited for the chip sets of a memory module, since the strip, which measures 100 x 16 mm in total, has already been cut into eight smaller pieces of 12.5 x 16 mm each.
Note:The application is at your own risk! Caseking assumes no liability for damage caused by improper use or use in unsuitable fields of application. A sufficiently high heat transfer should be carefully checked after installation!
Technical details:
Toote kirjeldus inglise keeles:
Thermal Pads are a real alternative to traditional thermal grease for many applications. The Thermal Pads offer some advantages over liquid or viscous materials. This makes it easy to cut the pads themselves to the required size, eliminating the uncertainty of applying paste or smearing during smoothing. The EK Water Blocks pad offered here is already pre-cut into eight smaller pieces, slightly self-adhesive, and usually initially holds itself in the previously assigned position.
Of course, the fixation in the further course of assembly can not be completely dispensed with, since heat source, thermal pad and heatsink (or the heat delivery surface) should come into contact with as large a surface area as possible in order to ensure optimum heat transfer. Here, too, comes EKWB the user maximum by the 100 x 16 mm large, blue pad in several strengths is available, the version offered here is 2.0 mm thick. In addition, the material is pleasantly flexible and adaptable, which makes it useful in many places.
To mention just a few application examples: in RAM water coolers, alternative graphics card coolers, chipset coolers and many other components, where it is important to effectively dissipate waste heat (eg on cooling fins, heatpipes, radiators, heatsinks, etc.). Since the EKWB heat-conducting pads do not conduct electricity, there are virtually no limits to the imagination of most electronic components. On the other hand, the pads with a high thermal conductivity of 3.5 W / (m · K) make some thermal grease look old. The pads here are ideally suited for the chip sets of a memory module, since the strip, which measures 100 x 16 mm in total, has already been cut into eight smaller pieces of 12.5 x 16 mm each.
Note:The application is at your own risk! Caseking assumes no liability for damage caused by improper use or use in unsuitable fields of application. A sufficiently high heat transfer should be carefully checked after installation!
Technical details:
- Dimensions (total): 100 × 16 mm (L x W)
- Dimensions: (single): 12.5 x 16 mm (L x W)
- Thickness: 2.0 mm
- Number: 1 strip (pre-cut into eight smaller pieces)
- Thermal conductivity: 3.5 W / (m · K)
- Operating temperature: -55 to +200 ° C
