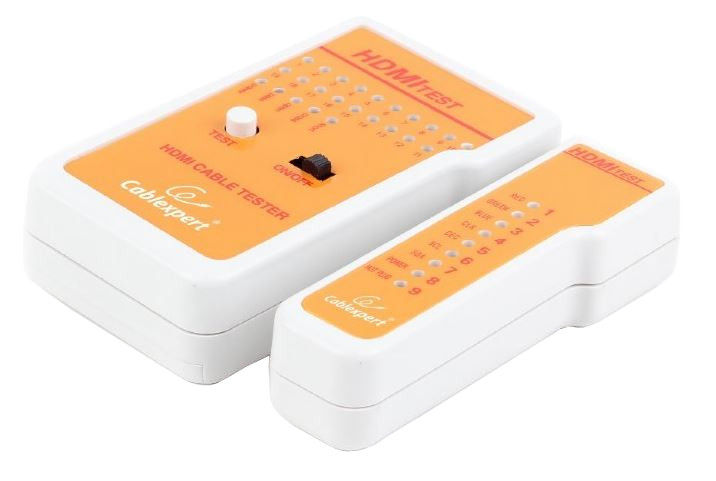

Gembird Digital Network Cable Tester HDMI
Toote kirjeldus inglise keeles:
Cable tester for all (type A) HDMI cables
Indicates several different wiring problems: open circuit, short circuit, jumper wire, etc
Supports HDMI cables with type A connector: v. 1.0 , 1.1 , 1.2 , 1.2a, 1.3a/b/c, 1.4 /a
Up to 50 working hours on a single 9V battery
Practical LED signal indicators
Power supply: 9 V DC battery (not included)
Power consumption: up to 20 mA
Display: LEDs for each wire
Working ambient temperature: -10 ... + 60°C
Tester ports: tester HDMI A master socket, tester remote HDMI A socket; remote unit HDMI A socket
Max cable length: up to 30 m
Cable problems detected: open circuit, short circuit, reverse connection, crossover or cross-talk interference
Sleep mode: after 1 idle minute
Dimensions: 104 x 62 x 29 mm (main unit), 100 x 30 x 25 mm (remote unit)
Net weight: 0.107 kg
Toote kirjeldus inglise keeles:
Cable tester for all (type A) HDMI cables
Indicates several different wiring problems: open circuit, short circuit, jumper wire, etc
Supports HDMI cables with type A connector: v. 1.0 , 1.1 , 1.2 , 1.2a, 1.3a/b/c, 1.4 /a
Up to 50 working hours on a single 9V battery
Practical LED signal indicators
Power supply: 9 V DC battery (not included)
Power consumption: up to 20 mA
Display: LEDs for each wire
Working ambient temperature: -10 ... + 60°C
Tester ports: tester HDMI A master socket, tester remote HDMI A socket; remote unit HDMI A socket
Max cable length: up to 30 m
Cable problems detected: open circuit, short circuit, reverse connection, crossover or cross-talk interference
Sleep mode: after 1 idle minute
Dimensions: 104 x 62 x 29 mm (main unit), 100 x 30 x 25 mm (remote unit)
Net weight: 0.107 kg
