Toote kirjeldus inglise keeles:

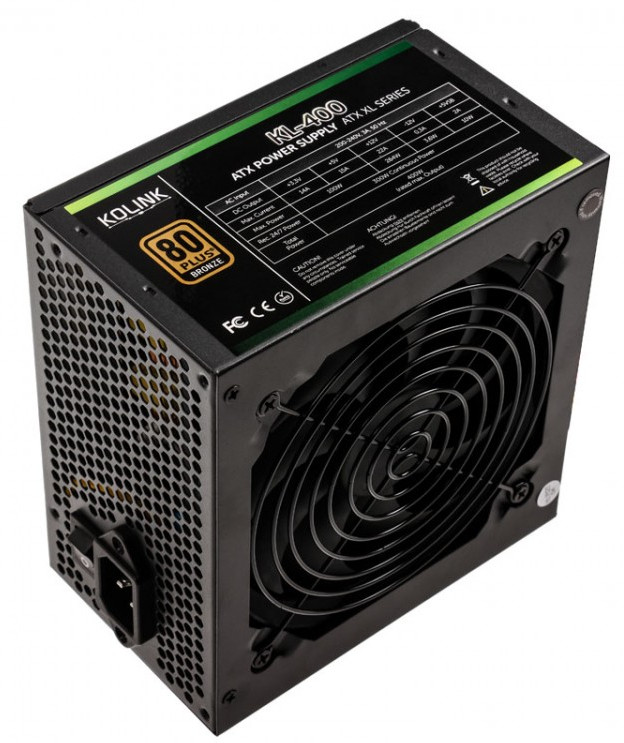

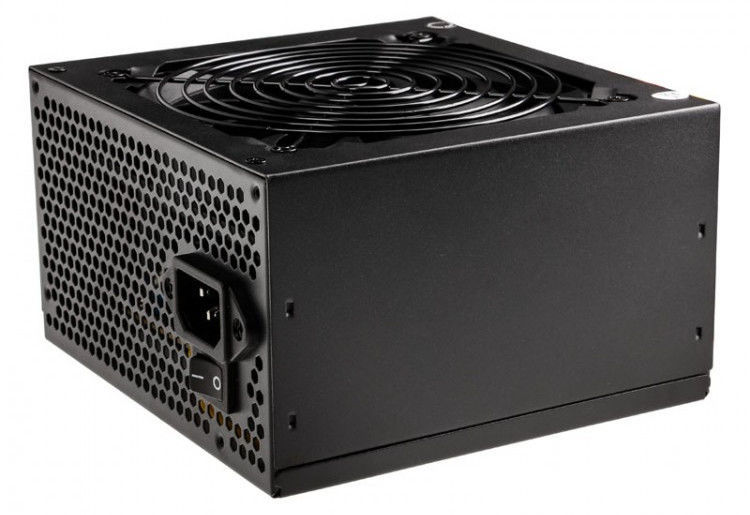

With the KL series, Kolink is also entering the market for PC power supplies in Germany and presenting particularly low-priced models for users with a low budget and system integration. Three models initially cover the power range of 400 to 600 watts and have the official 80 Plus Bronze certification. The electronics are cooled by a large 120-millimeter fan. Already offered here 400-watt model of the budget series has sufficient connections and power for mid-range computers. The electronics deliver up to 288 watts on the + 12-volt line, on the rails with +3.3 and +5 volts another 100 watts are provided.
In addition to the 20 + 4 pin for the motherboard, the Kolink has 400 watts via a 4 + 4-pin connector for powering the processor and a 6 + 2-pin connector for a dedicated graphics card. For the other components there are three SATA, one floppy and two Molex connectors available. The Kolink KL-400 is clearly one of the cheapest options for the power supply.
Note:
Technical details:
With the KL series, Kolink is also entering the market for PC power supplies in Germany and presenting particularly low-priced models for users with a low budget and system integration. Three models initially cover the power range of 400 to 600 watts and have the official 80 Plus Bronze certification. The electronics are cooled by a large 120-millimeter fan. Already offered here 400-watt model of the budget series has sufficient connections and power for mid-range computers. The electronics deliver up to 288 watts on the + 12-volt line, on the rails with +3.3 and +5 volts another 100 watts are provided.
In addition to the 20 + 4 pin for the motherboard, the Kolink has 400 watts via a 4 + 4-pin connector for powering the processor and a 6 + 2-pin connector for a dedicated graphics card. For the other components there are three SATA, one floppy and two Molex connectors available. The Kolink KL-400 is clearly one of the cheapest options for the power supply.
Note:
For the benefit of the environment, the manufacturer dispenses with the supply of a power cord for the mains connection.
Technical details:
- Dimensions: 140 x 86 x 150 mm (W x H x D)
- Fan: 120 mm (automatic control)
- Efficiency: at least 85/82/82 percent at 50/20/100 percent load, 80 plus bronze certified
- Active PFC (0.9)
- Form factor: ATX12V 2.3
- Maximum output power: 400 W
Maximum continuous power: 400 W
+ 3.3V: 14 A
+ 5V: 15 A
3.3V + 5V: 100W
+ 12V:
264W / 22A -12V: 0.3A (3.6W )
+ 5Vsb: 2 A (10 W) - Connections (fixed):
1x 20 + 4-pin
1x 4 + 4-pin (CPU / ATX12V / EPS12V)
1x 6 + 2-pin PCIe
3x SATA
2x 4- pin Molex
