Toote kirjeldus inglise keeles:
Key features:
Certificate 80 PLUS®Gold – up to 92% energy efficiency @115 V.
Very quiet up to 70% load.
Warranty: 5 years* in door-to-door system for end-users – after product registration.

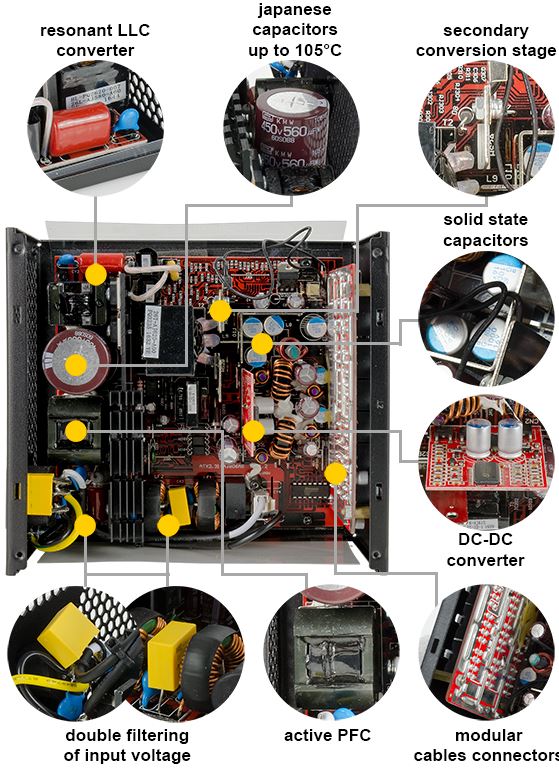

Advanced DC-DC converters.
Japanese electrolytic and polymer aluminum capacitors (solid state) certified up to 105°C.
Four PCI-E 6+2pin connectors – for configurations with high-end graphics cards.
Two EPS 4+4pin connectors – for configurations with motherboards designed for overclocking and for workstations.
Full compatibility with C6/C7 states of Intel Haswell oraz ErP Lot 6 2013 norm.
Technical specification:
Model: Supremo FM2 Gold 750 W
Dimensions: 15,0 cm (width) × 8,7 cm (height) × 16,1 cm (lenght)
Energy efficiency: up to 92% (80 PLUS®Gold certificate)
PFC: active (PF: 0,99)
MTBF@40°C: 100 000 h
Net weight: 2,34 kg
Colour: Black
Standard: ATX12V 2.31
ROHS certificate: yes
Safety certificates: CE, CB, CCC
Fully compatible with Intel C6/C7 states in Haswell, Skylake, Kaby Lake processors
Wires: fully modular
Cooling system: 1 × 120 mm PWM fan with Japanese double bearing by NMB
Safety features:
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
OPP (Over Power Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Power distribution:
Input: 100 ~ 240 V / 67-47 Hz / 12-6 A
Output +5 V: 18 A
Output +3,3 V: 18 A
Output +12 V: 62 A
Output -12 V: 0,3 A
Output +5 Vsb: 3 A
Max. output +12 V: 744 W
Max. combined output +3,3 V and +5 V: 100 W
Combined continuous power: 750 W
Connectors:
Modular:
1 × 24-pin ATX |600 mm|
