Veeplokk EK Water Blocks

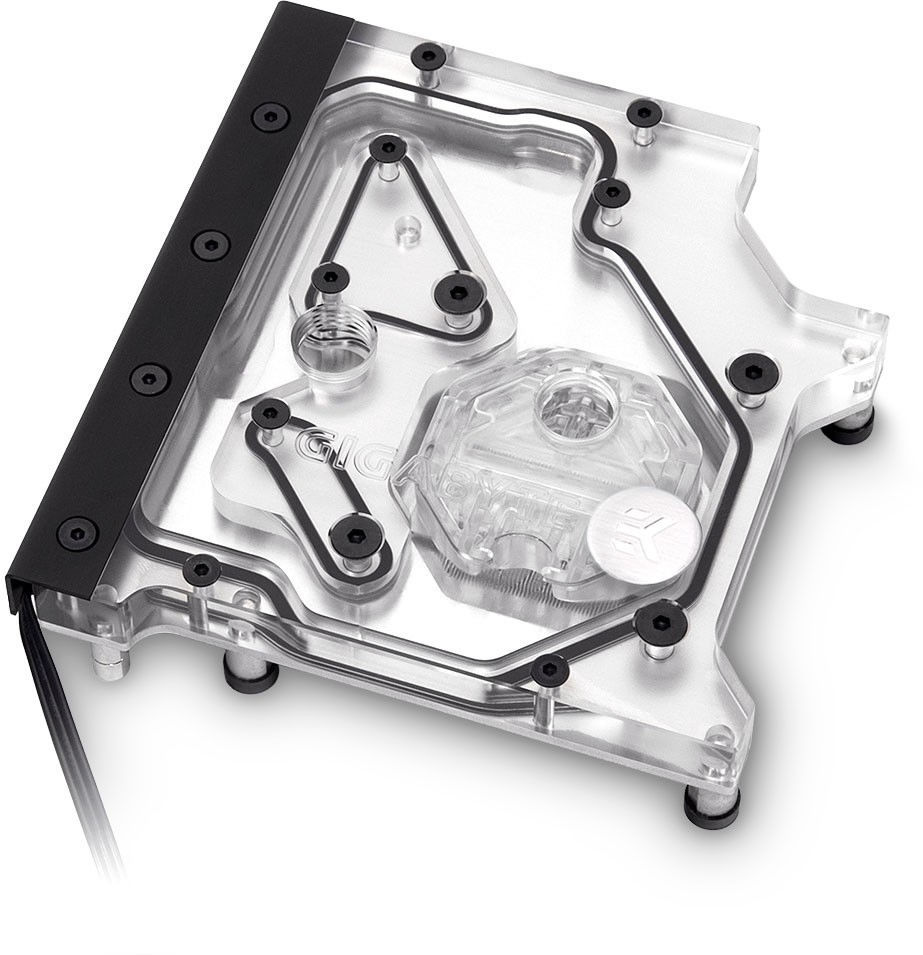

EK-FB GA Z270/Z370 GAMING RGB Monoblock is a complete all-in-one (CPU and motherboard) liquid cooling solution for a vast number of GIGABYTE® Z270X and GIGABYTE® Z370 motherboards. The monoblock is equipped with a 3-pin Digital RGB LED strip and it offers unparallel aesthetics alongside with superior performance, while the regular 4-pin RGB LED strip is included in the box! The both RGB LED strips are compatible with GIGABYTE® RGB Fusion, thus offering a full lighting customization experience!

EK-FB GA Z270/Z370 GAMING RGB Monoblock is a complete all-in-one (CPU and motherboard) liquid cooling solution for 7th/ 6th Generation Intel® Core™ Processors and 8th Gen Intel® Core™ Processors. This monoblock is compatible with the following GIGABYTE® motherboards:

• GA-Z270X-Gaming 8 (rev. 1.0)
• GA-Z270X-Gaming 7 (rev. 1.0)
• GA-Z270X-Gaming K7 (rev. 1.0)
• GA-Z270X-Gaming 5 (rev. 1.0)
• GA-Z270X-Gaming K5 (rev. 1.0)
• GA-Z270X-Designare (rev. 1.0)
• GA-Z270X-Ultra Gaming (rev. 1.0)
• GA-Z270-Phoenix Gaming (rev. 1.0)
• GA-Z270-Gaming 3 (rev. 1.0)
• GA-Z270-Gaming K3 (rev. 1.0)
• GA-Z270X-UD5 (rev. 1.0)
• GIGABYTE Z370 Aorus Gaming 5 (rev. 1.0)
• GIGABYTE Z370 Aorus Gaming 7 (rev. 1.0)

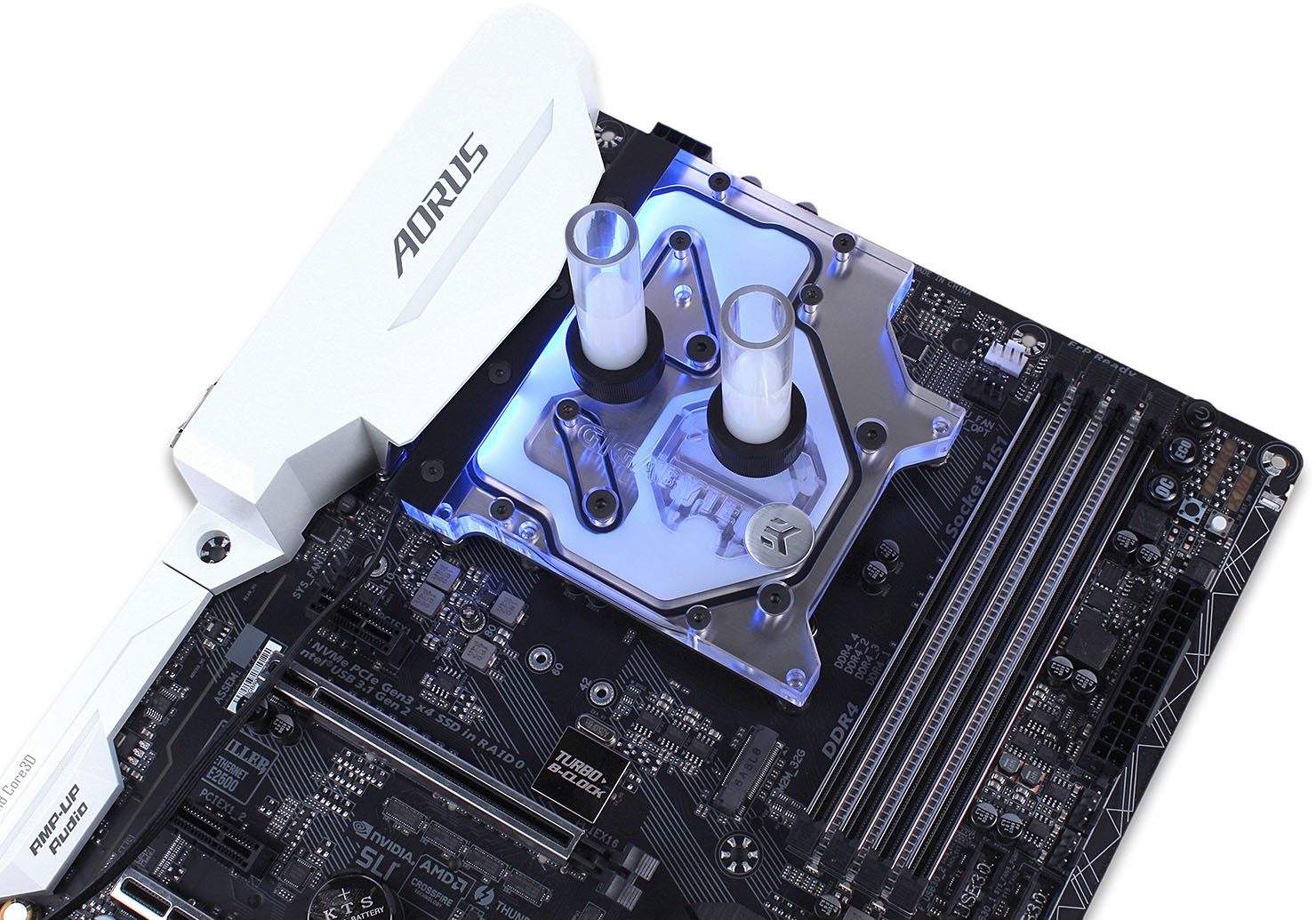

Designed and engineered in cooperation with GIGABYTE®, this monoblock uses award-winning EK-Supremacy EVO cooling engine to ensure best possible CPU cooling. This water block directly cools Intel LGA-1151 socket type CPU and the power regulation (MOSFET) module as water flows directly over all critical areas. It is a very high flow water block that can be easily used with the system using weaker water pumps.

The base of the monoblock is made of nickel-plated electrolytic copper while the top is made of quality acrylic glass material. The nickel plated brass screw-in standoffs are pre-installed and allow for easy installation.

The monoblock is equipped with a 3-pin Digital RGB LED strip that connects to the motherboard's 3-pin Digital Addressable LED header. Another 4-pin RGB LED strip is included in the box that can connect to the motherboard's 4-pin LED header (if supported) or it can be connected to any other 4-pin LED controller. The LED strip cover can easily be removed for adjusting the cable orientation or replacing the LED strip with a custom solution as well!

Unlike other solution on the market, this is a true one-piece, sturdy and reliable liquid cooling product which requires only two connector fittings for proper operation.

The enclosed thermal pad is used on voltage regulator modules to improve stability, performance and prolongs the lifespan of the motherboard. For the CPU, please use the enclosed (electrically non-conductive) thermal grease EK-TIM Ectotherm.

- EK-FB GA Z270/Z370 Monoblock - Nickel water block
- 4-pin LED Strip
- Mounting mechanism
- Thermal grease EK-TIM Ectotherm
- Thermal pads
