Name: Vesijahutussüsteemi lisatarvik EK Water Blocks EK-Quantum Vector, 11 cm, hõbe v./must v.
Brand: EK Water Blocks
Price: 247.9 EUR
Availability: OutOfStock

Toote informatsioon

Üldnäitajad

Toote tüüp

Vesijahutuste tarvikud (radiaatorid, kontrollerid jne)

Kaubamärk

EK Water Blocks

Mudel

EK-Quantum Vector

On mõeldud kasutamiseks

Jahutussüsteem

Värv

Hõbe v., Must v.

Pikkus

11 cm

Kõrgus

2.1 cm

Laius

26.6 cm

Sisseehitatud LED valgustus

Jah

Pakendi kogus, tk

Täiendav info

Täisplokk GPU jahuti individuaalseks vesijahutuseks AMD Radeon RX 6800/6900 graafikakaartidele

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

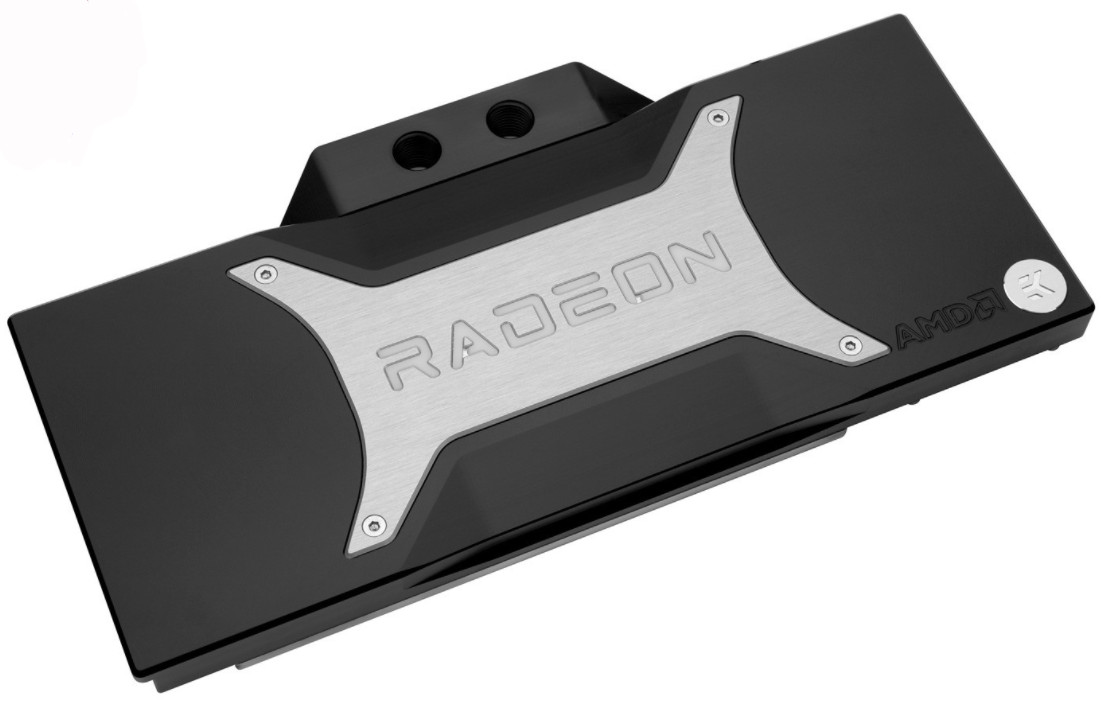

EK-Quantum Vector RX 6800/6900 D-RGB - AMD Radeon Edition

Perfect fit for AMD Radeon RX 6800/ 6900 graphics cards
Effective cooling performance thanks to the nickel-plated copper base
Four G1/4" connections to be included in the circuit
Digitally addressable RGB LED lighting (8 LEDs, 3-pin, 5VDG)
Reliable and durable EPDM O-rings for sealing
Includes backplate for increased stability and cooling
EK Water Blocks EK-Quantum Vector RX in detail
Complete your custom liquid cooling system with a special edition AMD Radeon RX 6800 and 6900 . Densely placed LEDs illuminate the word Radeon and thus your love for the graphics card. In addition, the water cooler is adorned with a light strip, which ideally showcases it. The EK Water Blocks EK-Quantum Vector fits the PCBs of AMD Radeon RX 6800/ 6900 graphics cards. The Vector water block directly cools the GPU, memory, and voltage converters by channeling the coolant directly over these areas.
Strong cooling thanks to split-flow design
The EK Water Blocks EK-Quantum Vector RX 6800/ 6900 AMD Radeon Edition is a water cooler for custom water cooling in full-block design . The cooler covers all relevant heat sources of the graphics card and keeps them at temperatures - i.e. the GPU, the memory and the voltage converters. Thanks to its high thermal conductivity and the optimized channel structure, the nickel-plated copper base ensures that the heat generated is effectively dissipated.

The split-flow cooling engine design features low hydraulic flow restriction . This means: It offers a flow-optimized design, so that it can also be used with weak and throttled pumps.
The material and its cooling
The lid is made of acetal and the base is made of nickel- plated copper . The connection terminal has four nickel-plated brass plugs (G1/4” thread). Due to the flat design of the cooler, it is also possible to connect several graphics cards in a network without any problems.

The included backplate significantly improves the power distribution in the area of the voltage regulator and contributes to the cooling of the PCB components through the thermal pads. The backplate is anodized black and is mounted on the back of the graphics card. In addition to the visual enhancement, the backplate offers greater stabilitythe graphics card with water cooler. This effectively prevents the PCB from bending as a result of one-sided tightening of the screws when fastening the main cooler and thus being permanently exposed to tension.
