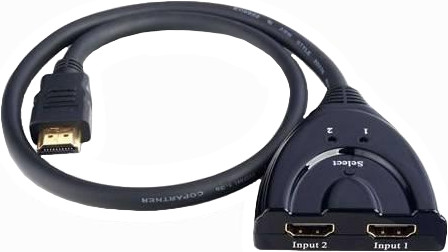

Techly 305311 Bi-Directional 2-Ports HDMI Switch
Toote kirjeldus inglise keeles:
This is a kind of high performance HDMI Switch. Allows to pass both from two sources to a display or from a source to two displays. Press the switch to select 1 or 2 channels. With a single HDMI cable (pigtail) this converter can not only reduce costs but also saves you time. This kind of HDMI Switch forwards video in high resolution (in multiple resolutions up to 1080p) and digital audio from the sources to display units.
Characteristics
Specifications
Physical Information
Toote kirjeldus inglise keeles:
This is a kind of high performance HDMI Switch. Allows to pass both from two sources to a display or from a source to two displays. Press the switch to select 1 or 2 channels. With a single HDMI cable (pigtail) this converter can not only reduce costs but also saves you time. This kind of HDMI Switch forwards video in high resolution (in multiple resolutions up to 1080p) and digital audio from the sources to display units.
Characteristics
- Two-Way HDMI Switch, allows both to switch between two sources to a display is to switch from one source to two displays alternately
- Supports highest video resolution up to 1080p
- Supports bandwidth of 250MHz / 2.5Gbps per channel (7.5Gbps all channels)
- Supports deep color 12bit per channel (36bit all channel)
- HDCP pass-through
- Supports uncompressed audio such as LPCM
- Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
- Supports all 3D formats, including [email protected]/24Hz, [email protected]/60Hz, bandwidth up to 250MHz.
- Supports 4Kx2K
Specifications
- Input DDC Signal: 5 volts p-p (TTL)
- Maximum Single Link Range: 1920 x 1080 p
- Video Output: HDMI
- Vertical Frequency Range: 50/60 Hz
- Video Amplifier Bandwidth: 2.5Gbps / 250MHz
- Resolution (HDTV)
- - Interlaced (50 & 60Hz): 480i, 576i, 1080i
- - Progressive (50 & 60Hz): 480p, 576p, 720p, 1080p
Physical Information
- Operating temperature: 0°C to + 70°C
- Operating Humidity: 10% to 85% RH (non-condensing)
- Storage Temperature: -10°C to + 80°C
- Storage humidity: 5% to 90% RH (non-condensing)
- External power supply: not required
- Power consumption: 5 W max
