Tootekirjeldus inglise keeles:

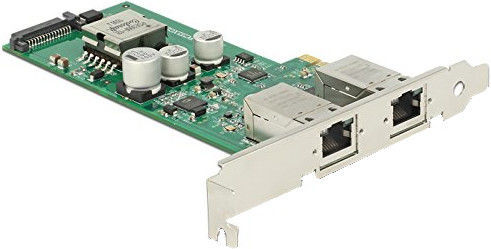

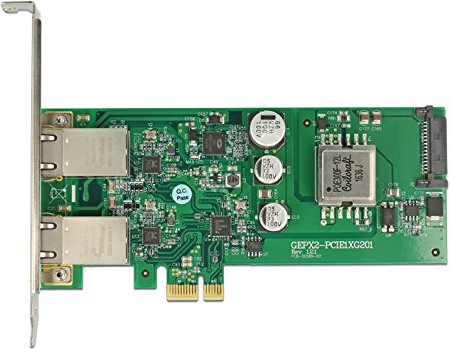

This PCI Express card by IOI offers two network ports with a data transfer rate up to 1 Gbps. The RJ45 ports support Power over Ethernet according to IEEE 802.3af / 802.3at, so you can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable.
• Connector:
external: 2 x Gigabit LAN RJ45 jack with screw nuts
internal: 1 x SATA 15 pin power connector
1 x PCI Express x1, V2.0
• Chipset: Renesas
• Data transfer rate:
Ethernet up to 10 Mb/s
Fast Ethernet up to 100 Mb/s
Gigabit Ethernet up to 1 Gbps
PCI Express x1 up to 5 Gbps
• Supports Full Duplex flow control (IEEE 802.3x)
• Supports IEEE 802.3 10Base-T and 802.3u 100Base-TX
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010 (EEE)
• Supports 9k Jumbo frames
• Supports IEEE 802.3af & IEEE 802.3at Power Sourcing Equipment (PSE)
• Power delivery: max. 30 W total
• PoE power input from PCIe or SATA 15 pin power connector
This PCI Express card by IOI offers two network ports with a data transfer rate up to 1 Gbps. The RJ45 ports support Power over Ethernet according to IEEE 802.3af / 802.3at, so you can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable.
• Connector:
external: 2 x Gigabit LAN RJ45 jack with screw nuts
internal: 1 x SATA 15 pin power connector
1 x PCI Express x1, V2.0
• Chipset: Renesas
• Data transfer rate:
Ethernet up to 10 Mb/s
Fast Ethernet up to 100 Mb/s
Gigabit Ethernet up to 1 Gbps
PCI Express x1 up to 5 Gbps
• Supports Full Duplex flow control (IEEE 802.3x)
• Supports IEEE 802.3 10Base-T and 802.3u 100Base-TX
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010 (EEE)
• Supports 9k Jumbo frames
• Supports IEEE 802.3af & IEEE 802.3at Power Sourcing Equipment (PSE)
• Power delivery: max. 30 W total
• PoE power input from PCIe or SATA 15 pin power connector
