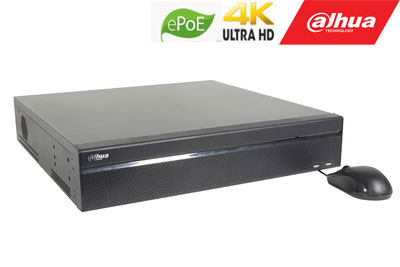

Name: Võrgusalvesti Dahua 581616P4KS2E, must v.
Brand: Dahua
Price: 2069 EUR
Availability: OutOfStock

Toote informatsioon

Üldnäitajad

Toote tüüp

Võrgusalvestid (DVR, NVR)

Kaubamärk

Dahua

Mudel

581616P4KS2E

Värv

Must v.

Kanalite arv

Liides

HDMI

Maksimaalne kõvaketta maht

16 TB

Pikkus

440 mm

Kõrgus

451 mm

Laius

95 mm

Kaal

7000 g

Maksimaalne eraldusvõime

1920 x 1080

Ühenduse tüüp

USB

USB-pesade arv

Pretensiooni esitamise õigus eraklientidele

24 kuud

Ühildub operatsioonisüsteemidega

Android, UNIX, iOS

Pinge

100 - 240 V

Pretensiooni esitamise õigus äriklientidele

12 kuud

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

• Smart H.265 + / H.265 / Smart H.264 + / H.264 / MJPEG

• Max 320Mbps Incoming Bandwidth

• Up to 12MP Resolution for Preview and Playback

• 2HDMI / 2VGA simultaneous video output

• 1-8 PoE Ports Support 800m ePoE & EoC

Technical Specifications:

System

• Main Processor Quad-core Embedded processor

• Operating System Embedded LINUX

Audio and Video

• IP Camera Input 16 Channel

• Two-way Talk 1 Channel Input, 2 Channel Output, RCA

Display

• Interface 2 HDMI, 2 VGA

Resolution

• HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768

• VGA1: 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768

• HDMI2 / VGA2: 1920 × 1080

• Decoding Capability 4-ch @ 8MP (30fps), 16-ch @ 1080P (30fps)

Multi-screen Display

• 1st Screen: 16CH: 1/4/8/9/16

• 2nd Screen : 1/4/8/9/16

• OSD Camera title, Time, Camera lock, Motion detection, Recording

Recording

• Compression Smart H.265 + / H.265 / Smart H.264 + / H.264 / MJPEG

• Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.

• Bit Rate 16Kbps ~ 20Mbps Per Channel

• Record Mode Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Stop

• Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30sec , Post-record: 10 ~ 300 sec

Video Detection and Alarm

• Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips

• Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video

Loss and Tampering

• Alarm input 16 Channel

• Relay Output 6 Channel

Playback and Backup

• Sync Playback 1/4/9/16

• Search Mode Time / Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

• Play, Pause, Stop, Rewind, Fast play, Slow Play , Next File, Previous File, Next Camera, Previous Camera,

• Full Screen, Backup Selection, Digital Zoom

• Backup Mode USB Device / Network / eSATA Device

Third-party Support

• Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Network

• Interface 1 RJ-45 Port (10/100 / 1000Mbps)

• PoE 16 ports (IEEE802.3af / at)

• 1-8 ports support ePoE & EoC

Network Function

• HTTP, HTTPS, TCP / IP, IPv4 / IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4IP

• Max. User Access 128 users

• Smartphone iPhone, iPad, Android

• Interoperability ONVIF 2.4, SDK, CGI

Storage

• Internal HDD 8 SATA III Ports, Up to 10 TB capacity for each HDD

• eSATA 1 eSATA

Auxiliary Interface

• USB 4 USB Ports (2 Rear USB 3.0, 2 Front USB 2.0)

• RS232 1 Port for PC Communication and Keyboard

• RS485 1 Port for PTZ Control

Electrical

• Power Supply Single, AC100V ~ 240V, 50 ~ 60 Hz

• Power Consumption

• NVR: <17.5W (Without HDD)

• PoE: Max 25.5W for single port

• 150W total rated power, 80% control for protection

• Fan Smart fan, automatically adjust running speed

Environmental

• Operating Conditions -10 ° C ~ + 55 ° C (+ 14 ° F ~ + 131 ° F), 86 ~ 106kpa

• Storage Conditions -20 ° C ~ + 70 ° C (-4 ° F ~ + 158 ° F), 0 ~ 90% RH

Construction

• Dimensions 2U, 440mm x 451.5mm x 95mm; (17.3 "x 17.8" x 3.7 ")

• Net Weight 7kg (15.4 lb) (without HDD)

• Gross Weight 9.5kg (20.94 lb) (without HDD)

• Installation Rack-mounted

Certifications

• CE EN55032, EN55024, EN50130-4, EN60950-1

• FCC Part 15 Subpart B, ANSI C63.4-2014

• UL UL 60950- 1
