Tootekirjeldus inglise keeles:

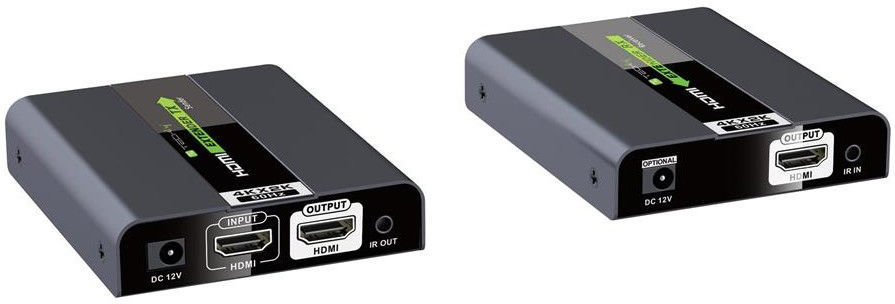

This HDMI Extender allows to transmit the HDTV signal over long distances using a Cat. 6 / 6A / 7 network cable.
The network cable allows you to reach up to 50m away supporting 4K @ 30Hz resolution and simultaneously transports power to the receiver. The product also supports the IR pass-back function to control the source from the receiver's station. The pass-back EDID technology also allows for maximum compatibility
Thanks to its versatility it can be used in any workplace, whether it be for public places, studios, offices and conference rooms or simply for domestic use.
Features
• HDMI Extender to extend transmission distances using a Cat. 6 / 6A / 7 network cable
• Supports maximum video resolution of 4Kx2K @ 60Hz
• Supports HDMI2.0, HDCP2.2 compatible
• Transmitter equipped with an HDMI port to add a local monitor
• With built-in pass-back EDID function to ensure better compatibility with connected devices
• Supports IR pass-back function (IR range 20 ~ 60KHz)
• Supports 50m distance with 4K @ 30Hz resolution and 30m resolution with 4K @ 60Hz resolution
• With metal housing that guarantees strength and durability
Specifications
• HDMI compatibility: HDMI2.0
• HDCP compatibility: HDCP2.2
• HDMI resolution: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz, 3840x2160 @ 24/25/30 / 60Hz
• Supported audio formats: LPCM / DTS-HD / Dolby / AC3
• Data transfer rate: 18Gbps
• TMDS signal input and output: 0.5 ~ 1.5Vp-p (TMDS)
• DDC signal input and output: 5Vp-p (TTL)
• Input cable length: ≤8m (AWG24)
• Output cable length: ≤8m (AWG24)
• Voltage / Current: DC12V / 1A
• Consumption: TX: 4W; RX: <6W
• Operating temperature: 0 ~ 50°C
• Storage temperature: -10 ~ 70°C
• Humidity (without condensation): 0 ~ 90%
• Dimensions (WxDxH): 101.1 x 81.6 x 20.6 mm
• Material: aluminum alloy
• Black colour
• Weight: TX: 190g, RX: 190g
Certification
• EC
• ROHS
• WEEE
Package Contents
• 1x HDMI Extender Transmitter
• 1x HDMI Extender Receiver
• 1x IR Blaster extension
• 1x extension IR receiver
• 1x 12V 1A power supply
• 1x Instruction manual
