Tootekirjeldus inglise keeles:

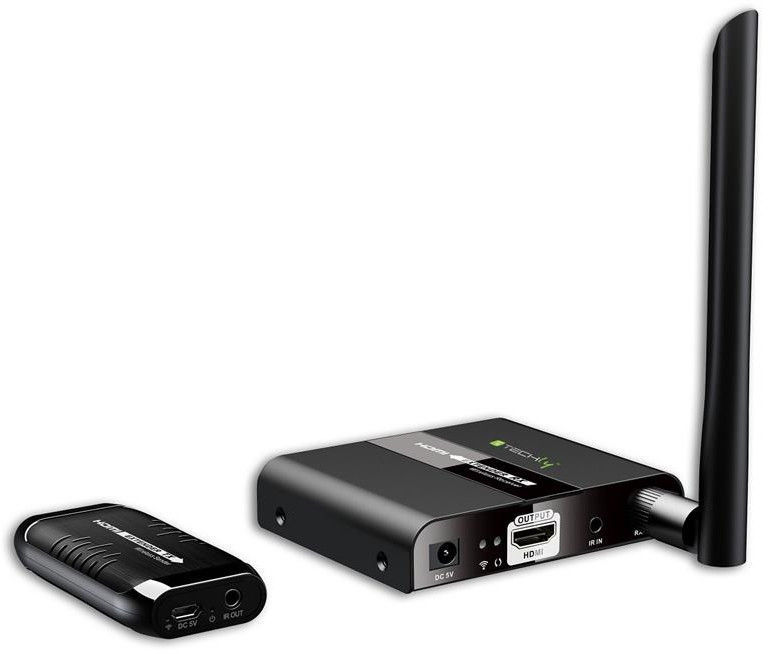

This HDMI wireless extender includes transmitter unit and receiver unit, allows to transmit and extend HDMI signal up to 50 meters long away wirelessly, it has strong anti-interference ability by running at 5GHz operation frequency, and supports point to point connection. IR passback with 20-60KHz frequency helps to remote control the source device from the receiver side. It is really a very good solution for meeting, conference, home entertainment and multi-media education etc.
These wireless extenders may lose the signal if the transmission occurs through walls, glasses, or other obstacles. It is recommended to install in barrier-free environments and reduce obstacles, so that the wireless signal can maintain its stability
Features
• Extends HDMI signal from source to display wirelessly up to 50mt: no need connection cables between transmitter and receiver
• Supports wireless point-to-point configuration
• Supports higer video resolution up to 1080p Full HD
• Compatible HDCP1.2
• Supports IR remote control function
• Transmitter powered from USB cable (USB port on transmitter)
• Mini design with HDMI male connector, connects with any HDMI source directly
Specification
• HDMI compliance: HDMI1.3
• HDCP compliance: HDCP1.2
• HDMI resolution supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
• Audio format supported: Audio stereo L/R
• Maximum transfer rate: 10.2 Gbps
• Input and output TMDS signal: 0.7~1.5Vp-p (TMDS)
• Input and output DDC signal: 5Vp-p(TTL)
• Input cable lenght supported: ≤5m (standard HDMI1.3 cable AWG26)
• Output cable lenght supported: ≤5m (standard HDMI1.3 cable AWG26)
• IR remote control: supports IR Passback with 20~60KHz frequency
Wireless
• Wireless transmission: 5GHz
• Transmission distance supported; up to 50 meters
• Latency: ≤200 ms
Operating environment
• Working temperature: 0°C – 40°C
• Storage temperature: -20°C – 70°C
• Humidity (without condensation): 0 - 90%
Body properties
• Dimension TX: 88.90(W) x 38.88 (D) x 15.17 (H)mm
• Dimension RX: 131.65(W) x 95 (D) x 19.90 (H)mm
• Color: Black
• Weight: TX: 30g; RX: 220g
Package contents
• HDMI Wireless Transmitter x 1
• HDMI Wireless Receiver x 1
• Power supply DC 5V/2A x 1
• IR Blaster cable extension x 1
• IR Receiver cable extension x 1
• USB cable x 1
• User's manual
This HDMI wireless extender includes transmitter unit and receiver unit, allows to transmit and extend HDMI signal up to 50 meters long away wirelessly, it has strong anti-interference ability by running at 5GHz operation frequency, and supports point to point connection. IR passback with 20-60KHz frequency helps to remote control the source device from the receiver side. It is really a very good solution for meeting, conference, home entertainment and multi-media education etc.
These wireless extenders may lose the signal if the transmission occurs through walls, glasses, or other obstacles. It is recommended to install in barrier-free environments and reduce obstacles, so that the wireless signal can maintain its stability
Features
• Extends HDMI signal from source to display wirelessly up to 50mt: no need connection cables between transmitter and receiver
• Supports wireless point-to-point configuration
• Supports higer video resolution up to 1080p Full HD
• Compatible HDCP1.2
• Supports IR remote control function
• Transmitter powered from USB cable (USB port on transmitter)
• Mini design with HDMI male connector, connects with any HDMI source directly
Specification
• HDMI compliance: HDMI1.3
• HDCP compliance: HDCP1.2
• HDMI resolution supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
• Audio format supported: Audio stereo L/R
• Maximum transfer rate: 10.2 Gbps
• Input and output TMDS signal: 0.7~1.5Vp-p (TMDS)
• Input and output DDC signal: 5Vp-p(TTL)
• Input cable lenght supported: ≤5m (standard HDMI1.3 cable AWG26)
• Output cable lenght supported: ≤5m (standard HDMI1.3 cable AWG26)
• IR remote control: supports IR Passback with 20~60KHz frequency
Wireless
• Wireless transmission: 5GHz
• Transmission distance supported; up to 50 meters
• Latency: ≤200 ms
Operating environment
• Working temperature: 0°C – 40°C
• Storage temperature: -20°C – 70°C
• Humidity (without condensation): 0 - 90%
Body properties
• Dimension TX: 88.90(W) x 38.88 (D) x 15.17 (H)mm
• Dimension RX: 131.65(W) x 95 (D) x 19.90 (H)mm
• Color: Black
• Weight: TX: 30g; RX: 220g
Package contents
• HDMI Wireless Transmitter x 1
• HDMI Wireless Receiver x 1
• Power supply DC 5V/2A x 1
• IR Blaster cable extension x 1
• IR Receiver cable extension x 1
• USB cable x 1
• User's manual
