Toote informatsioon
Viega Eco Plus 490x200 mm H=1130mm
Tootekirjeldus inglise keeles:

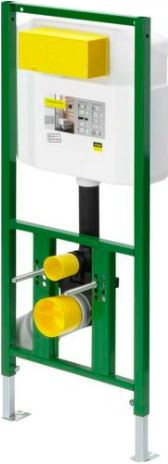

Viega Eco Plus WC element
for flush plates Visign
for pre-wall mounting please order separately: Viega Eco Plus Fixing set Model 8173
flush actuation from front, dual flush technology, adjustable ceramic height, barrier-free
Components
powder-coated steel frame, concealed cistern 2H, WC connection elbow DN90 (depth-adjustable) made of PP, eccentric adapter DN90/100 made of PP, WC connection fitting, fixing material for element (for floor) and ceramic, screws (self-drilling) for fixing to metal support profiles, hole Ø 11 mm for fixing in wooden frame construction or application of fixing element for support arm (model 8169.2), alignment help
Cistern components
corner valve with pre-mounted water connection Rp½, filling valve set, drain valve set
Technical data
Partial flush volume factory setting approx. 3 l
Partial flush volume setting range approx. 3–4 l
Full flush volume factory setting approx. 6 l
Full flush volume setting range approx. 6–9 l
Note
Immediate reflushing is possible at the factory settings!
Flush plates and accessories: product group WC and urinal actuation accessories!
** for construction height 1130 mm only
